Line Pull and Rope Capacity:
| Layer of Wire Rope | Pull by Layer lb/ kg |
Total Rope on the Drum ft / m | Line Speed at 60 l/min (15.9 g/min) fpm / mpm |
| 1st | 8,000 / 3,630 | 25.6 / 7.8 | 49.0 / 15.0 |
| 2nd | 6,669 / 3,025 | 56.1 / 17.1 | 59.7 / 18.2 |
| 3rd | 5,717 / 2,593 | 91.9 / 28.0 | 69.6 / 21.2 |
| 4th | 5,000 / 2,269 | 131.0 / 40.0 | 79.4 / 24.2 |
Specifications
- Line Speed (at 1st layer of rope) 49 fpm at 15.9 g/min (15 mpm at 60 l/min)
- Operation Pressure 2,175 psi / 150 bar
- Max Oil Flow 15.9 g/min (60 l/min)
- Hydraulic Motor 4.7 cu in (77.8 cc)
- Gear Ratio 2-stage planetary gear 16:1
- Winch Construction Aluminum die cast housings with steel drum
- Clutch (Freespooling) Rotating ring gear
- Brake Spring applied drag brake together with supplied over-center valve
- Rotation of Winch Wire rope shall be under-wound orientation only

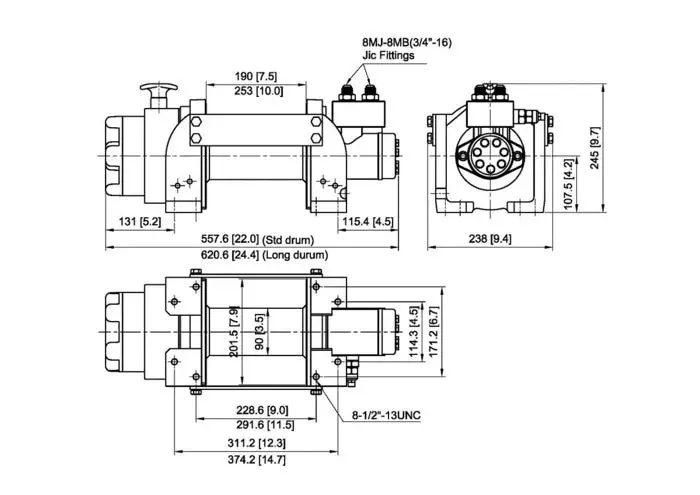

- Drum Barrel Diameter 3.5 inches (90 mm)
- Drum Flange Diameter 7.9 inches (201.5 mm)
- Distance Between Flanges 10 inches (253 mm)
- Mounting Bolt Pattern 11.5″ x 6.7″ (291.6 x 171.2 mm) ; 14.7″ x 4.5″ (374.2 x 114.3 mm)
- Wire Rope Recommended 3/8″ x 131′ (9.5 mm x 40 m)
- Winch Weight 82.7 lbs (37.5 kg)
- Gross Weight 99.9 lbs (45.3 kg)
- Box Dimensions 26.5″ x 14.6″ x 11.2″ (665 x 370 x 285 mm)
(680811)
