Description
Description
The all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.
Features
- Thermal Overload Protector
- Check Valve
- Spring Loaded Vibration Isolating Feet
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter

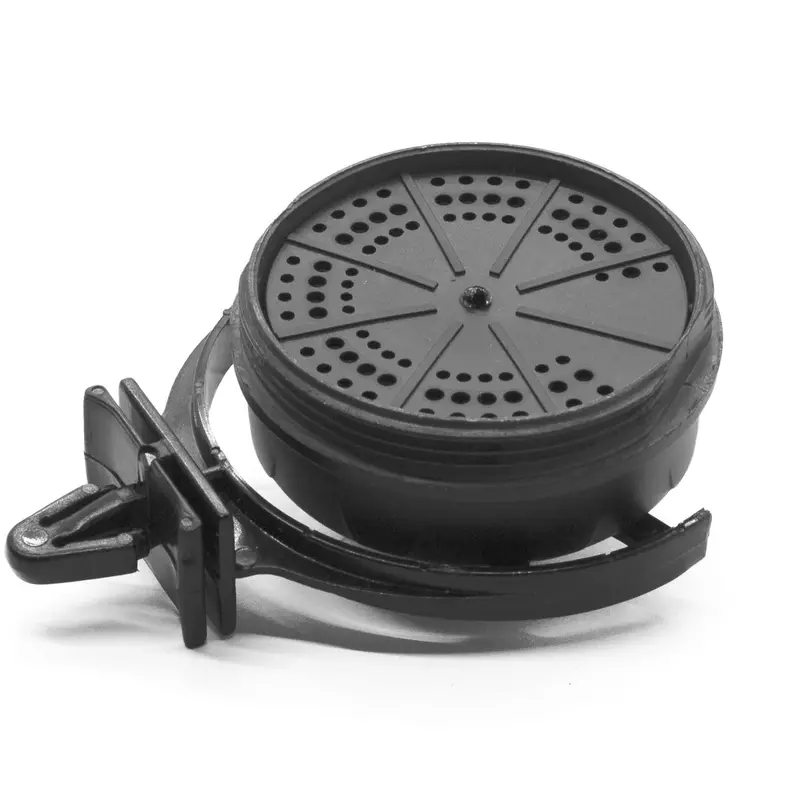

- Remote Mount 6-Stage Air Filter/Muffler Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Specifications
- PN: 31030
- CFM: 1.46 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Duty Cycle: 50% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 10.7″L x 4.4″W x 7.3″H
- Net Weight: 9.75 lbs.
(31030)
