Viair 95C Performance Onboard Air Compressor

Description

Description

The 95C is a light duty air compressor for smaller pneumatic requirements. It’s designed to fill no larger than a 1 gallon tank, features an omega bracket, check valve and is available in 12 or 24-volt.
See Resources Section below for wiring Diagram Options

Specifications

SPECS:
CFM: 1.03 @ 0 PSI
12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 9% @ 100 PSI
Max. Working Pressure: 120 PSI
Max. Air Tank Size: 1.0 Gallon
Max. 12V Amp Draw: 10-Amps
Max. 24V Amp Draw: 6-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions: 5.4″L x 3.1″W x 4.6″H
Net Weight: 2.55 lbs.

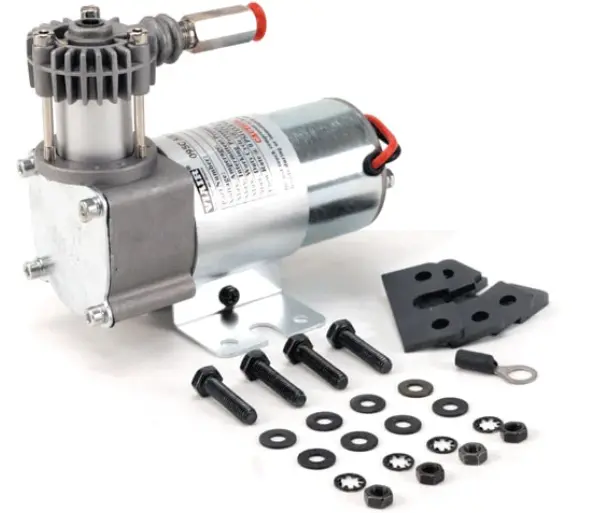

FEATURES:
Omega Bracket
Check Valve
Vibration Isolators
Mounting Hardware
Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor- Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29	7
10	0.71	8	1.0	19	8
20	0.67	8	2.0	18	9
30	0.64	9	3.0	16.5	9
40	0.60	9	4.0	15	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11	10
80	0.45	10	8.0	10	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

24-Volt Compressor – Supply Voltage 28 Volts

PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29	7
10	0.71	8	1.0	19	8
20	0.67	8	2.0	18	9
30	0.64	9	3.0	16.5	9
40	0.60	9	4.0	15	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11	10
80	0.45	10	8.0	10	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

Fill Rates

12-Volt Compressor

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 8 sec. (± 05 sec.)
85 to 105 PSI	16 sec. (± 03 sec.)
0 to 120 PSI	1 min. 23sec. (± 05 sec.)
90 to 120 PSI	27 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 20 sec. (± 10 sec.)
85 to 105 PSI	34 sec. (± 05 sec.)
0 to 120 PSI	4 min. 04 sec. (± 10 sec.)
90 to 120 PSI	54 sec. (± 05 sec.)

24-Volt Compressor

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 15 sec. (± 05 sec.)
85 to 105 PSI	15 sec. (± 03 sec.)
0 to 120 PSI	1 min. 20 sec. (± 05 sec.)
90 to 120 PSI	25sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 10 sec. (± 10 sec.)
85 to 105 PSI	31 sec. (± 05 sec.)
0 to 120 PSI	2 min. 40 sec. (± 10 sec.)
90 to 120 PSI	50 sec. (± 05 sec.)
