Description
Description

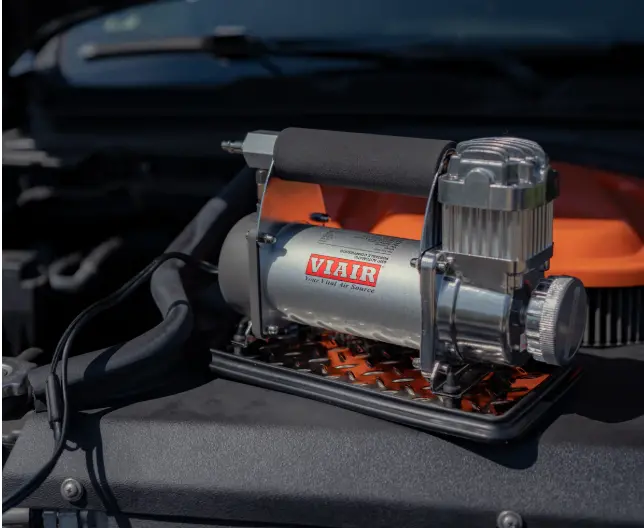

Fill your car, truck, SUV, or off-road vehicle tires quickly and accurately. With 1 hour of runtime and automatic shutoff, move from tire to tire and check pressure mid-fill without having to flip a switch. The direct-drive motor and maintenance-free operation make the 400P Automatic Portable Compressor 40045 powerful, convenient, and easy to use in any environment.
What’s in the Box
Compressor
Coil Hose
Inflation Gun
Inflation Tips Kit
Carry Bag
Specifications
SPECS:
CFM: 2.30 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Dimensions: 10.9″L x 5.8″W x 7.5″H
Net Weight: 10.70 lbs.
Power Cord Length: 8 ft.
Air Hose Length: 30 ft.
FEATURES:
Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
Thermal Overload Protector
Automatic Shut-Off Function
Quick Connect Air Hose with Heat Shield
Vibration-Resistant Diamond-Plate Sand Tray
Deluxe Dual Compartment Carry Bag
40-amp Inline Fuse Holder
Dual Battery Clamps
3 pc. Inflation Tips Kit
Presta Valve Adaptor
PLEASE NOTE:
The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 400P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.30 | 17 | 0 | 65.1 | 17 |
| 10 | 2.13 | 19 | 1.0 | 58.4 | 20 |
| 20 | 1.98 | 21 | 2.0 | 53.0 | 23 |
| 30 | 1.86 | 23 | 3.0 | 48.5 | 24 |
| 40 | 1.75 | 24 | 4.0 | 44.2 | 26 |
| 50 | 1.64 | 25 | 5.0 | 40.2 | 27 |
| 60 | 1.54 | 26 | 6.0 | 37.0 | 28 |
| 70 | 1.44 | 27 | 7.0 | 33.3 | 29 |
| 80 | 1.37 | 27 | 8.0 | 30.1 | 28 |
| 90 | 1.28 | 28 | 9.0 | 27.0 | 28 |
| 100 | 1.19 | 29 | 10.0 | 22.1 | 27 |
| 110 | 1.11 | 29 | |||
| 120 | 1.04 | 28 | |||
| 130 | 0.95 | 28 | |||
| 140 | 0.85 | 27 | |||
| 150 | 0.71 | 27 |
Fill Rates
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 3 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 35 sec. (± 05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 20 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 20 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 45 sec. (± 05 sec.) |
Product Resources
User Manual
Dimensional Drawing
