The Ultra-Light Duty OBA is ideal for light duty pneumatic tasks such as air horns, air lockers and more. While not intended for tire inflation, this system provides a reliable and cost effective air source package.
What’s in the Box
Compressor
Tank and AirLine

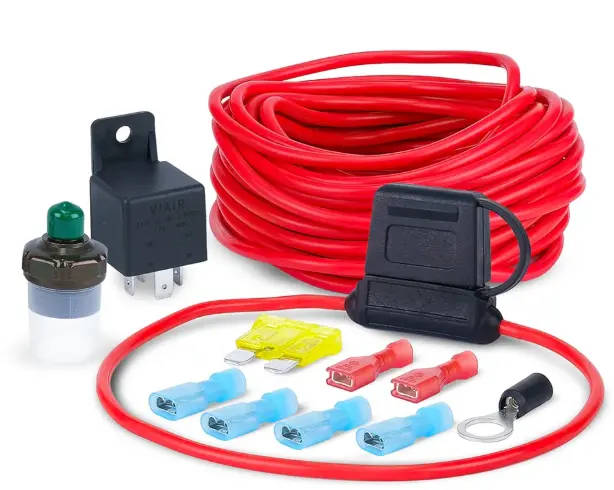

Electrical
Fittings
Mounting Kit
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 10% @ 100 PSI
Max. Working Pressure: 105 PSI
Max. Amp Draw: 13-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
FEATURES:
1.0 Gallon VIAIR Air Tank
98C VIAIR Air Compressor
Omega Bracket with Mounting Hardware
Pressure Switch (85 PSI on, 105 PSI off)
40-Amp Relay
145 PSI Safety Valve
T-Fitting: 1/4” (M) x 1/4″ (F) x 1/8” (F)
T-Fitting: 1/4” (M) x 1/4″ (F) x 1/4” (F)
1/4” Drain Cock
1/4” Compression Fitting
1/4” Plug (M)
(2) 1/4” (M) NPT to 1/8” (F) BSP
20ft. 16 Gauge Wire with Inline Fuse Holder
Accessory Airline
Electrical Connections
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor – Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.53 | 7 | 0 | 43.5 | 7 |
| 10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
| 20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
| 30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
| 40 | 0.83 | 11 | 4.0 | 20.7 | 12 |
| 50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
| 70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
| 80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
| 90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
| 100 | 0.48 | 12 |
Fill Rates
| 1.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 30 sec. (± 05 sec.) |
Product Resources
User Manual
Wiring Diagram
Plumbing Diagram
Dimensional Drawing
